Add Bluetooth Module To Your MINI60 HF Antenna Analyser

A while ago I purchased a "MINI60 HF Antenna Analyser" from Ebay to test some home-made antennas. I was disapointed to find it did not have the bluetooth module installed as I had seen on other MINI60 units I have used. The seller was adamant I was too stupid to notice his product excluded the bluetooth functionality that it should have, and it was just too bad for me... He got appropriate feedback ;-)

- - - - - - - - - - - - - - - - - - - - -
GO AHEAD... READ ON...
ALSO PLEASE CLICK ON SOME OF THESE GOOGLE AD's WHICH HELPS TO KEEP THIS WEBSITE GOING!!
- - - - - - - - - - - - - - - - - - - - -

I decided to purchase a HC-05 bluetooth module from a local supplier, configured it to 57600baud but the original MINI60.apk android app won't detect the MINI60 device paired by bluetooth. It appears the developer of the original MINI60.apk app hard-coded it to work with only 4 specific MAC addresses - to suit only the bluetooth modules they supplied of course and they say the MINI60 also needs a firmware update to use the bluetooth module. This is lies! Any SARK-100 or MINI60 firmware will work with bluetooth.

- - - - - - - - - - - - - - - - - - - - -
GO AHEAD... READ ON...
ALSO PLEASE CLICK ON SOME OF THESE GOOGLE AD's WHICH HELPS TO KEEP THIS WEBSITE GOING!!
- - - - - - - - - - - - - - - - - - - - -

After a bit of digging I found others had the same issue and a clever person has redesigned the MINI60 android app to work with all bluetooth MAC addresses so any HC-05 (or possiobly HC-06) bluetooth module will work. Also this modified app scales to the screen size better so the bottom line of frequencies is not chopped off.

Thanks!!

- - - - - - - - - - - - - - - - - - - - -
GO AHEAD... READ ON...
ALSO PLEASE CLICK ON SOME OF THESE GOOGLE AD's WHICH HELPS TO KEEP THIS WEBSITE GOING!!
- - - - - - - - - - - - - - - - - - - - -



These basic instructions will work for the MINI60, or any other SARK-100 clone

1. Get a HC-05 bluetooth module and configure it for 57600 baud to suit the MINI60 PSoC UART speed
   Other defaults should be OK but you can name the bluetooth module if you want to. The original bluetooth module was called "MINI60 ANT". Check out the HC-06 data sheet on what "AT" commands are required.

2. Solder bluetooth module into the MINI60 using the 5 small solder pads

3. Use Bluetooth on your Android device to pair the MINI60. Default HC-05 pairing password will be 1234

4. Copy the MINI60-DH1KLM app to your Android device storage and install it. Uninstall the original MINI60 app if you had it installed because it is useless.

5. Turn on the MINI60 and enable PCLINK using the usual SET & DOWN buttons so it says "Waiting Link''' on the screen

6. Start the MINI60-DH1KLM app, tap "Connect" and select your bluetooth module in the app

7. Done!



- - - - - - - - - - - - - - - - - - - - -
GO AHEAD... READ ON...
ALSO PLEASE CLICK ON SOME OF THESE GOOGLE AD's WHICH HELPS TO KEEP THIS WEBSITE GOING!!
- - - - - - - - - - - - - - - - - - - - -

Below are download links for the modified Android app, and also a Windows app.

Original Website: http://www.die-jetzis.de/sark100.htm

Original Download For Modified Android App: Mini60 DH1KLM.apk

Original Download For Windows App: WinPCC-Sark100 V1.0.01

Click HERE for Mirrored Download In Case The Original Web Site Is Down

- - - - - - - - - - - - - - - - - - - - -
GO AHEAD... READ ON...
ALSO PLEASE CLICK ON SOME OF THESE GOOGLE AD's WHICH HELPS TO KEEP THIS WEBSITE GOING!!
- - - - - - - - - - - - - - - - - - - - -

Connecting a bluetooth module to the SARK-100:

Click HERE for a photo of the SARK-100 working with a BC04 bluetooth module

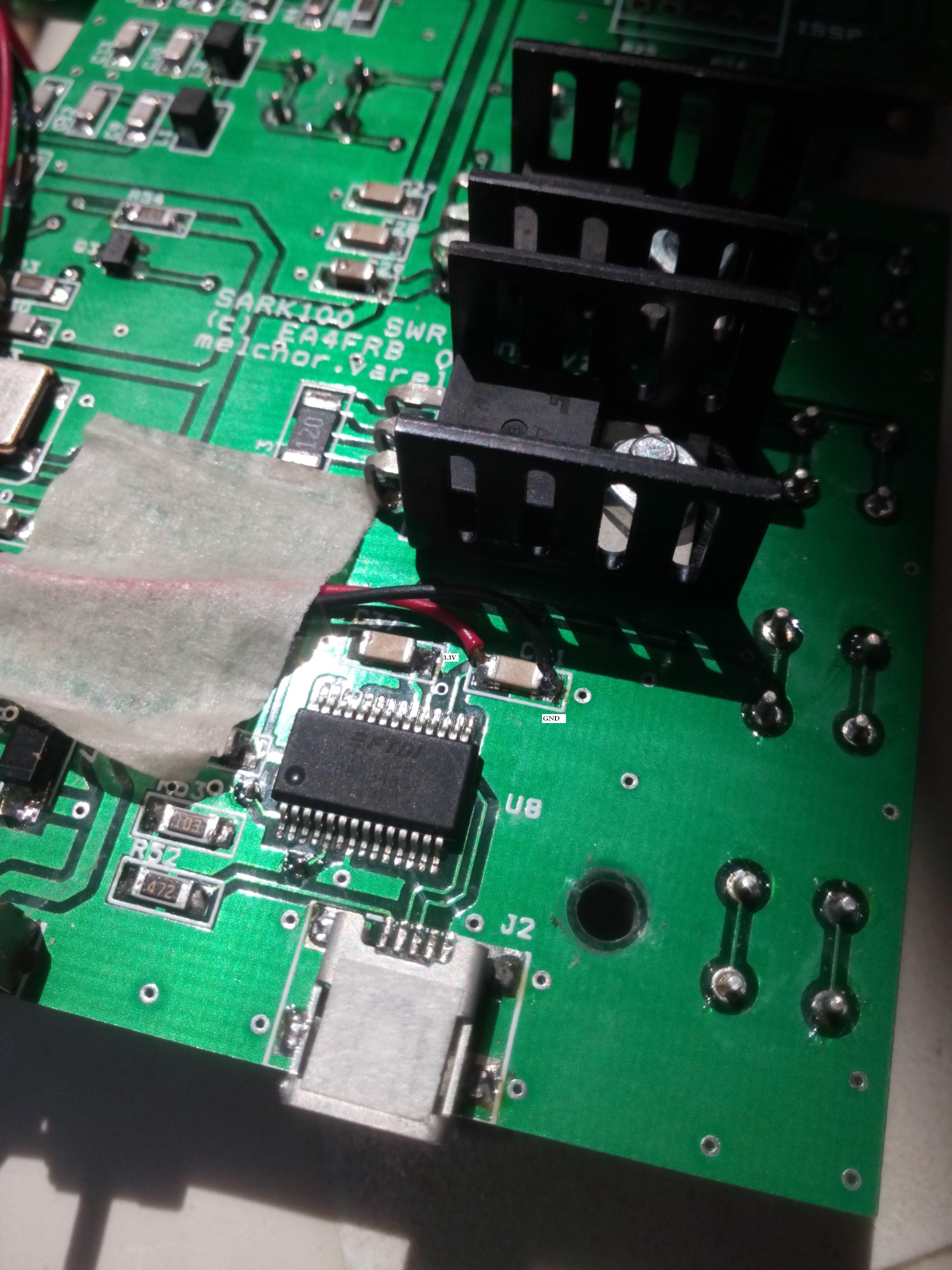

Click HERE for a photo of the 3.3V power supply from FT232 IC

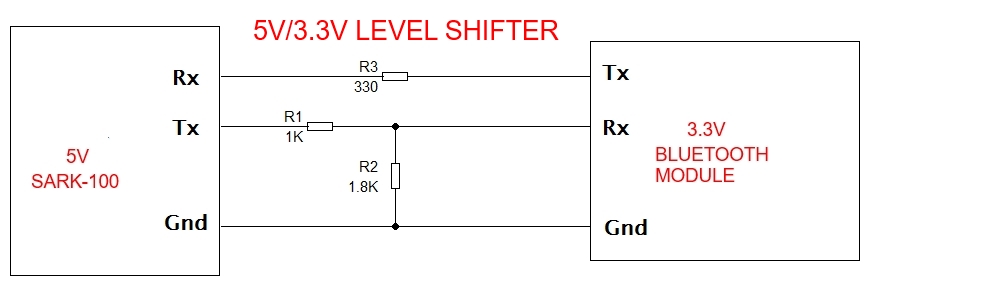

Click HERE for a diagram of the 5V/3.3V level shifter resistors
Photos kindly supplied by Juanjo Cuadros Romero. Note that he has installed level shifting resistors in line with RxD and TxD wires as the SARK100 unit runs on +5V and the bluetooth modules usually run on +3.3V (with 3.3V supplied from FT232 IC).
